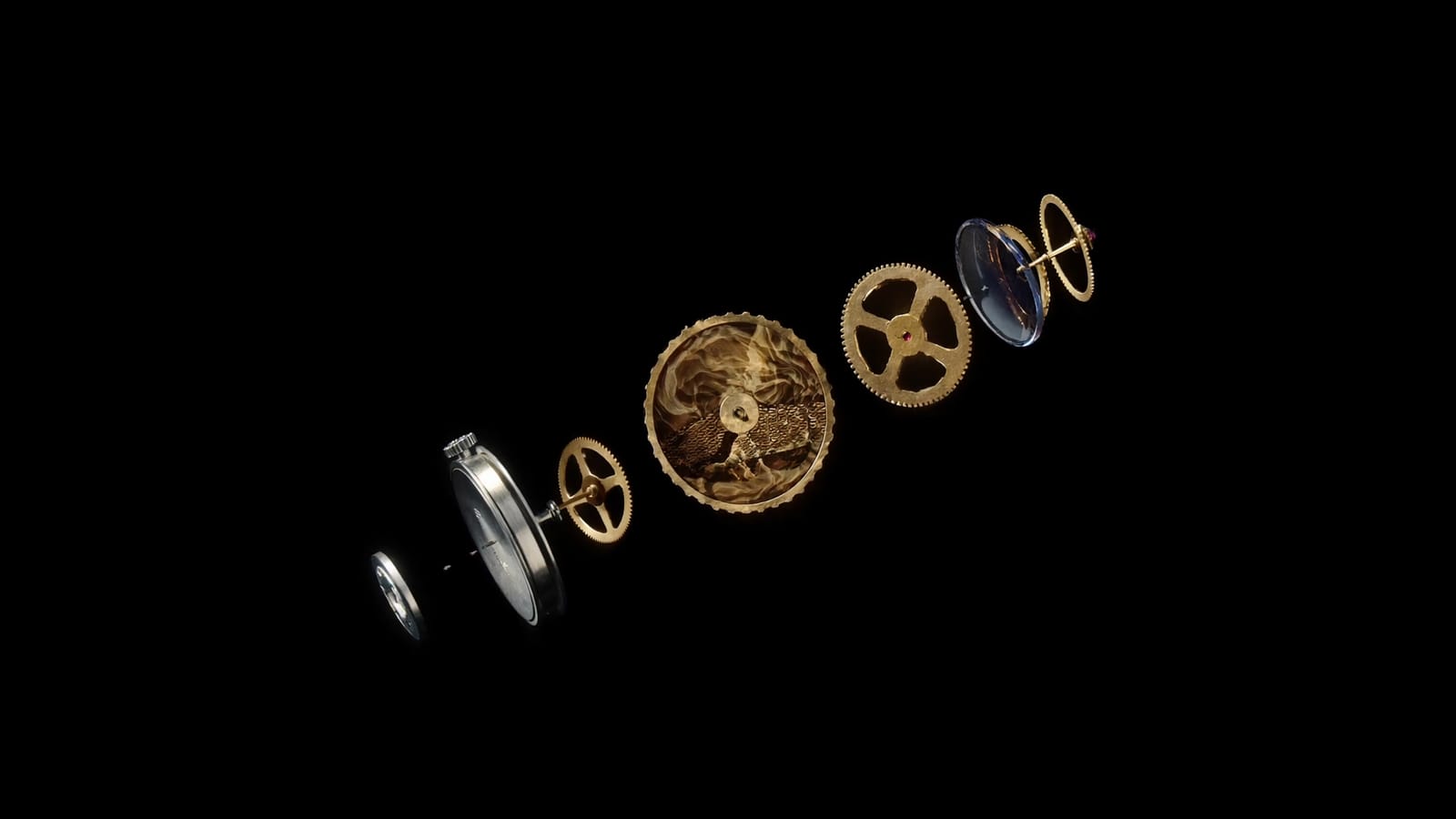

The ML-47 is built to come apart along a single axis. Scroll, and it does: 47 components lifted in the order a watchmaker would lift them, each named as it lets go.

Calibre ML-47, assembled by hand in Le Locle

Scroll, or drag the line below

The case lets go first

01 · Case and crown6 parts

Brushed steel, 39 mm across and 10.4 mm tall. The crown runs on a sealed tube, so the movement slides out the back without a single tool touching the dial.

  • Middle case
  • Caseback
  • Crown
  • Tube
  • 2 gaskets

Four wheels, one direction

02 · Going train11 parts

Centre, third, fourth and escape wheels pass the mainspring's pull down the line, each a little faster than the last. Spokes are cut by wire, then bevelled by hand.

4wheels
7pinions
60 minper centre turn

72 hours in one drum

03 · Barrel9 parts

The largest wheel on the line. Inside it, 52 cm of mainspring wound flat. The cover is flame-finished so you can tell it from the train at a glance.

72 hreserve
52 cmspring
40crown turns

Sapphire, domed both ways

04 · Crystal and dial7 parts

The crystal curves on both faces and is coated on the inside only, so a scratched outside never clouds the view. The dial sits on two feet and three hands.

  • Crystal
  • Dial
  • 2 dial feet
  • Hour
  • Minute
  • Seconds

The part that keeps the time

05 · Balance and bridges14 parts

The camera ends where the watch begins: a gold balance wheel on a ruby jewel, beating 8 times a second. It is the last part out and the first part checked.

4 Hzbeat
19rubies
±3 sper day

47 apart. Delivered whole.

06 · The line47 of 47

Every ML-47 is taken down along this line twice before it leaves Le Locle: once to finish, once to check. Then it is closed for 5 years.

Choose a case

A watch is easier to trust once you have seen it in pieces.

Odile Marchand, founder, Meridian Line

47Parts, each named on the line
72hPower reserve from 40 crown turns
19Ruby jewels
140Watches a year, then the bench closes

The ledger, in order of removal

Five groups, read left to right along the line. The service manual follows the same order, so the next watchmaker opens it the way the first one closed it.

  1. 01

    Case and crown

    6 parts

    Middle case, caseback, crown, crown tube and two gaskets. The case comes off first and goes back on last.

  2. 02

    Going train

    11 parts

    Centre, third, fourth and escape wheels with their pinions, all turning one way, all cut from the same gold-plated brass.

  3. 03

    Barrel

    9 parts

    Drum, mainspring, arbor, cover, ratchet, crown wheel, click and its spring, and the bridge that holds them.

  4. 04

    Crystal and dial

    7 parts

    Sapphire domed on both faces, the dial, its feet and three hands. Anti-reflective on the inside only.

  5. 05

    Balance and bridges

    14 parts

    Balance wheel, hairspring, pallet fork, two shock settings, the cock, the main plate and the screws that fix them.

Total on the line47 parts

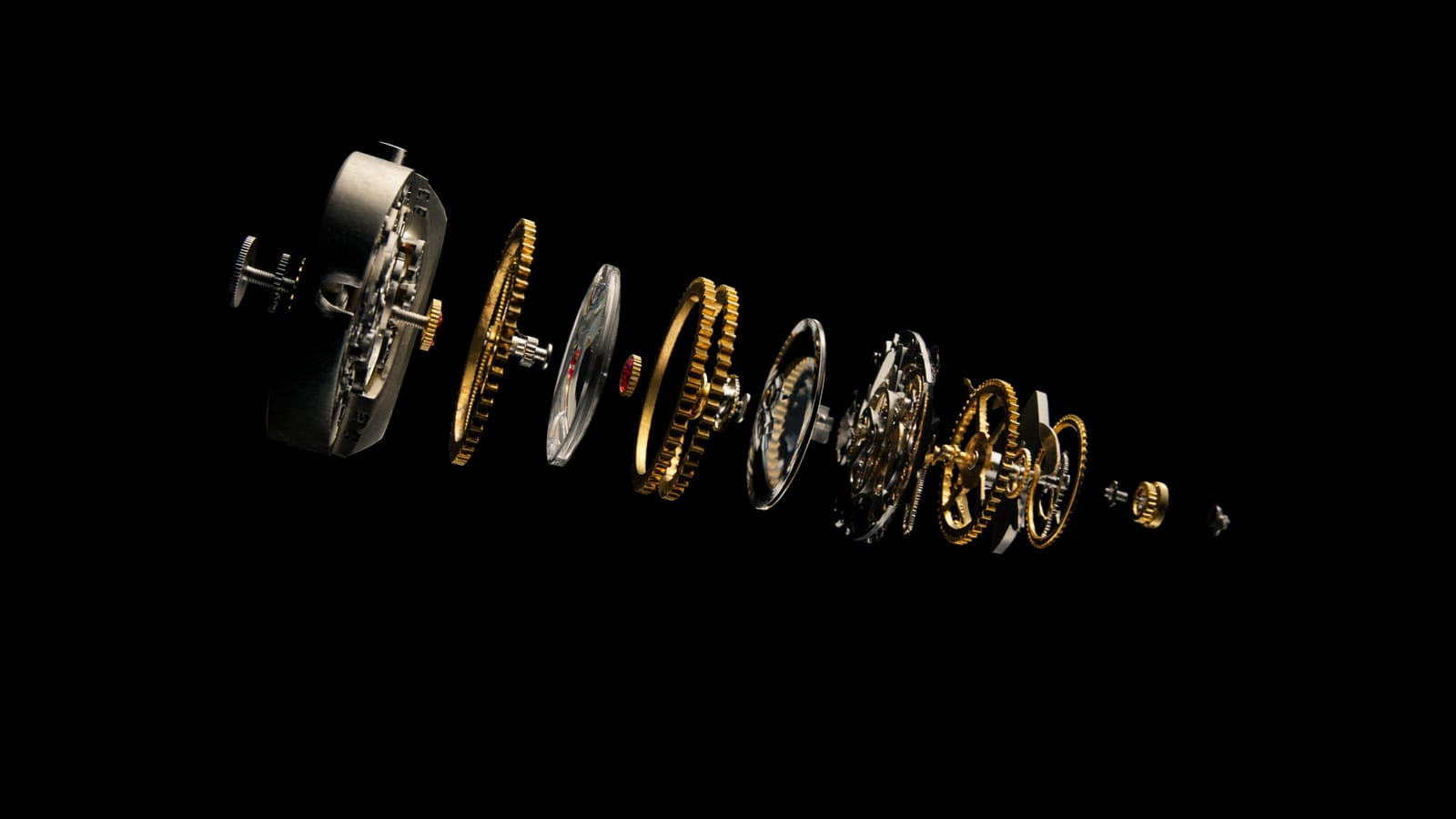

The ML-47 movement laid out along a single diagonal: case, gold wheels, crystal and balance in a row on black
The same line, seen from the crown.Case at left, balance at far right

Specification, nothing rounded

Calibre
ML-47, manual wind 47 components
Frequency
28,800 vph 4 Hz
Power reserve
72 h 40 crown turns
Rate
−1 / +3 s per day 5 positions
Jewels
19 ruby
Case
39 × 10.4 mm open caseback
Crystal
Sapphire domed both faces
Water resistance
50 m 5 bar
Service
Every 5 years taken down along the same line
